FRS/BRZ/GT86 Direct-Fit 19-Row Oil Filter Relocation Kit

Size Guide

5 items left

Grassroots Performance has tested quality and fitment of our oil cooler filter relocation and 19-row oil cooler on the Scion FRS, Subaru BRZ, and Toyota GT86. Using the provided hardware and fittings this is a bolt on application for these models.

A vital upgrade to any performance/track builds for added cooling and engine bay space. Oil leaves the block and travels through our adjustable length high temperature/high-pressure hoses. Classic design and proven engineering, this 2" thick dual pass oil cooler kit allows your oil to maintain peak performance temperature, also aiding the engine cooling system from being overworked. The oil filter relocation kit gives you the ability to place the filter at any location and the option of having ports for oil feed or oil sensor placement. Simple design and simple installation are both key functions of this bolt-on kit.


Collections:

Category: BRZ, FRS, GT86, Scion, Subaru

Type: Toyota


Specs

  • Core Size: 11.5" x 5.5" x 2.00"
  • Overall Size: 13" x 6.6" x 2.00"
  • High-Quality T-6061 Aluminum
  • Working load tested up to 150 psi
  • .38L increased oil capacity
  • -10AN In/Out
  • Suitable for Engines, Transmissions, Differentials, Power Steering, and anything else you can cool using oil

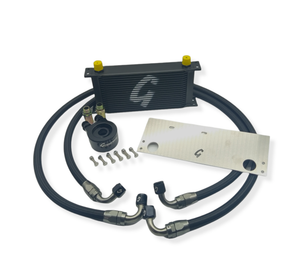

[1] 19 Row Oil Cooler
[3] (1.2m,1.4m,1.6m) Stainless Steel Braided Nylon Hose
[4] -10AN Straight Fittings  Installed on Lines (Adjustable Length)
[2] -10AN 90-Degree Swivel Fittings  Installed on Lines (Adjustable Length)
[1] 3/4-16 Female Fitting
[1]M20-1.5 Female Fitting
[2] Oil Filter Adapters

Grassroots Performance Limited Lifetime Warranty. This warranty is strictly applying to the sole part produced under the Grassroots Performance line of cooling parts. Ultimately covering oil cooling components and radiator components only which are sold under the “Grassroots Performance” line. The warranty is only valid for the “Original” purchaser of the Grassroots Performance product. The warranty is non-transferable.

To validate your cooling product and be eligible for a full warranty, the consumer must fill out the provided form. This form will be emailed to the owner after purchase. The product is then validated and will take on the limited lifetime warranty. The warranty form and product installation must be completed within 90 days of receiving the product to be eligible.
